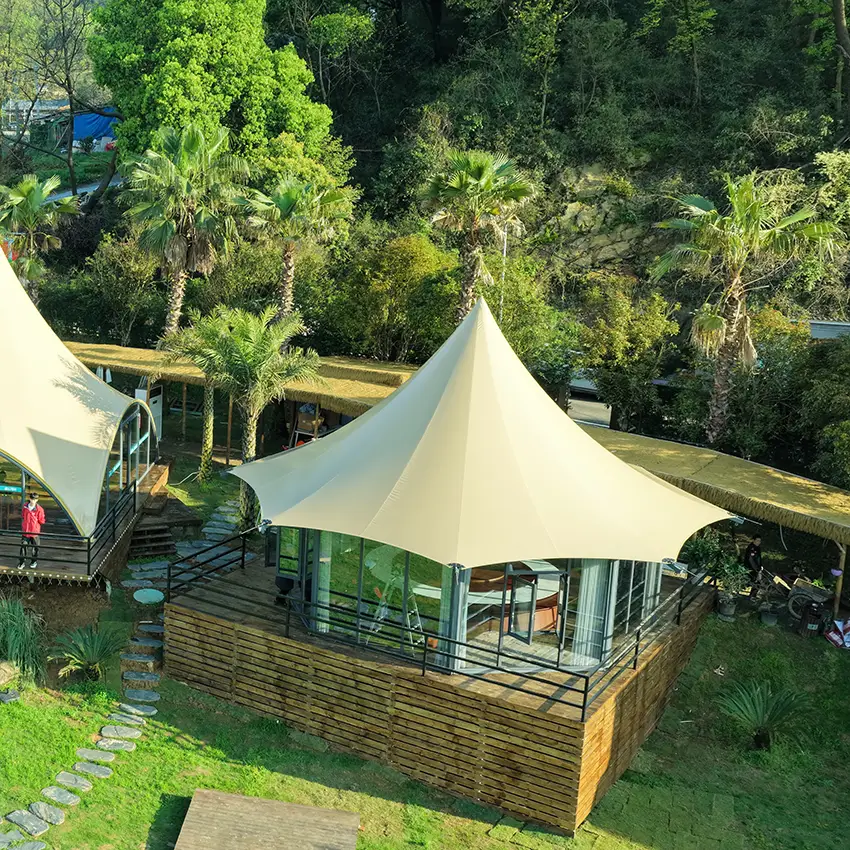

Single-peak hexagonal tent

分类:

The Single-peak Hexagonal Tent combines a hexagonal floor plan with a central high-peak roof structure. This design offers more usable interior space than traditional square or dome tents, while the single peak enhances water runoff, snow load capacity, and wind resistance.

Overall Dimensions

Diagonal
6.0m X 2.8m X 5.3m

Interior Dimensions

Side Length2.9m/
Diagonal5.9m/
Height2.8m/
Area 22.3m2

Projection Area

6.7m x7.7m/51.5m²

Curtain

5+15+5double tempered glass
65-series thermal break
aluminum frame,1.4mm thick

Tent Fabric Material

mildew-proof, flame-retardant) Canopy: 850g tensile membrane (total blackout, waterproof,
Insulation layer: 850g tensile membrane + ultrasonic cotton
Stretch fabric ceiling

Frame Material

Three-sided Wall with Three-sided Glass Curtain Wall
Main Frame: 80x80x3.0 Square Tube
60 X80 X3.0 Square Tube (Outdoor Baking Finish Treatmentt)
Wall: Plastic Wood Board + Extruded Polystyrene Board + Carbon Crystal Board
